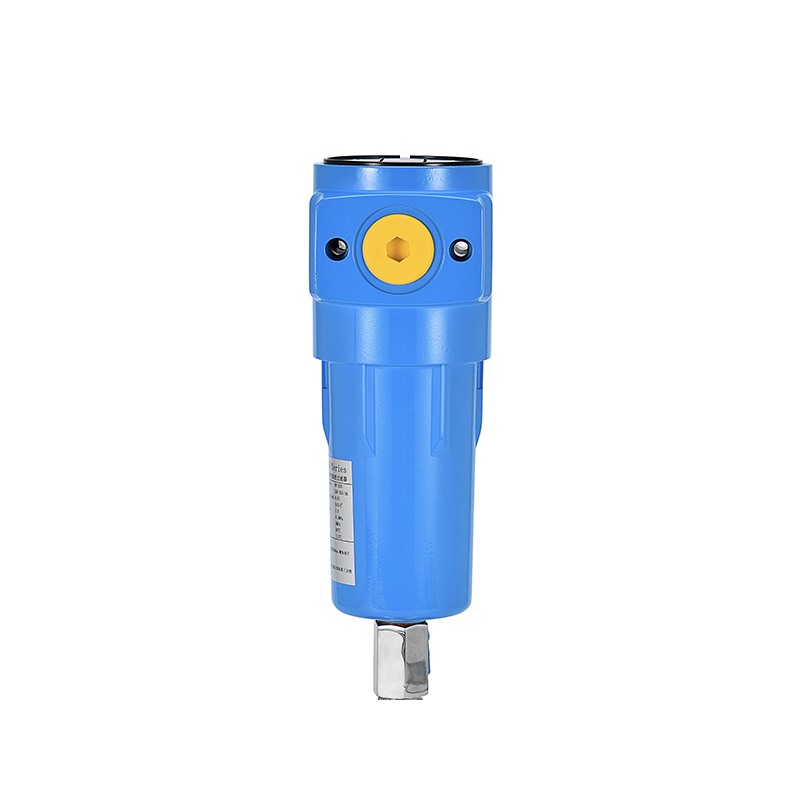

YunAir 30 bar Compressed Air Filters for Air Compressor

  • Technical Specifications
    Brand: YunAir
    Product Type: Air Filtration
    Product Series: GHF Series
    Flow rate: 1.0 to 7.5 m³/min
    Port Size: Rc1/2" to 1-1/2"
    Micron rating: 5 to 0.01 micron
    Materials of Construction: Die Cast Aluminium
    Operating pressure: 1.5 to 30 bar (22 to 435 psig)
    Operating Temperature: 2 to 80 ℃
    Housing Service Life 15 years
    Element Change Interval: 6000 to 8000 hours
    Accessories: Stainless steel manual drain valve
    Origin Shenzhen, China
  • Full Product Description

    YunAir's GHF series high-pressure air filters designed to remove solid particles, liquids, oils aerosols, odors and vapors at a rated filtration efficiency of somewhere 95% and 99.999+% at working pressures up to 30 bar thereby supplying compressed air to all purity classes as per ISO 8573-1.


    For PET bottle production, they are used in conjunction with reciprocating compressors or booster stations to provide blower air.


    Die casting filter housing:

    The air filter housing is made of aluminum alloy, treated with anti-corrosion technology, making it corrosion-resistant for maximum particle purity.


    Safety Guaranteed:

    A 120 bar pressure test was conducted on the housing.


    Reliable condensate drainage:

    A stainless steel manual tap drain is offered for air filters, it is optional to choose electronic condensate drain for coalescing air filters.


    Filtration grades:

    Five different filter grades are available for working pressures up to 30 bar, from pre-filters to activated carbon filters. This ensures application-appropriate filtration for all purity classes as per ISO 8573-1.
