GHS-A 0035 PF Compressed Air Filters with Pressure Gauge, Auto Drain

YunAir 3/4" new GHS-A 0035 PF Air Filters optional with Pressure Gauge, Auto Drain

  • Technical Specifications
    Brand: YunAir
    Product Type: Air Filtration
    Product Series: GHS-A Series
    Model No.: GHS-A0035
    Flow rate: 2.0 m³/min
    Port Size: Rc3/4"
    Micron rating: 5 to 0.01 micron
    Materials of Construction: Die Cast Aluminium
    Operating pressure: 1.5 to 16 bar (22 to 232 psig)
    Operating Temperature: 2 to 80 ℃
    Housing Service Life 15 years
    Element Change Interval: 6000-8000 hours

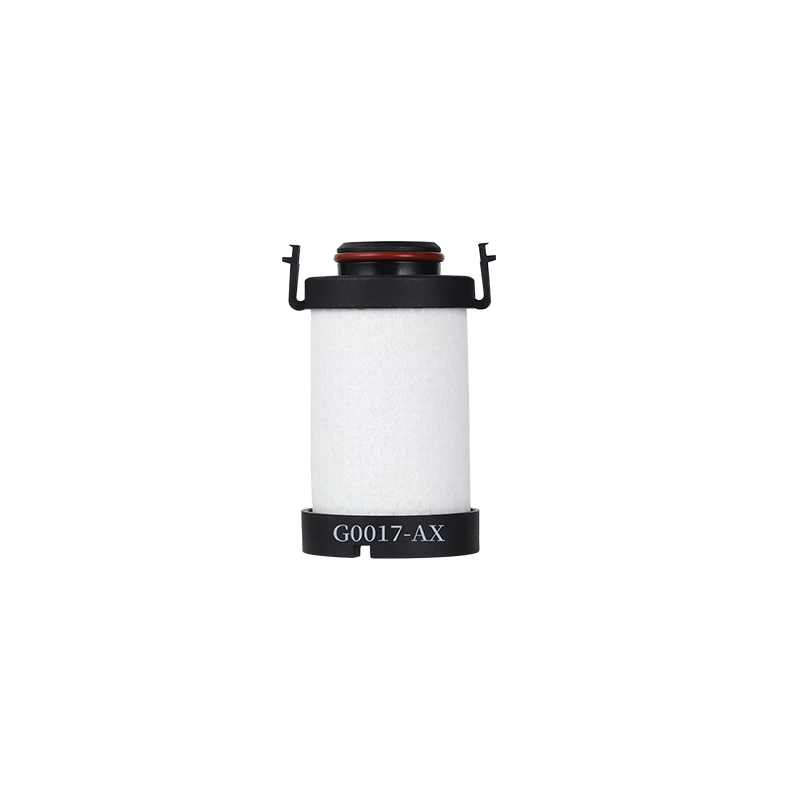

    Compatible Element: G0035 PF
    Accessories Optional: DPI, Auto Drain
    Origin Shenzhen, China
  • Full Product Description

    With great pleasure, today we would like to introduce our next generation high efficiency GHS-A series compressed air filters for you which are the state-of-the-art design based on our entire series. With air flow rate up to 37.2 m³/min, max.working pressure 16 bar, port size up to 3", applied to air compressors, air dryers, color sorters, sandblasting machines and etc., which could largely improve air quality, reduce production costs, increase product pass rate. Here are some of the features of these air filters for your consideration. Follow us www.yun-air.com, info@yun-air.com to get more product information# YunAir filters # YunAir GHS-A series air filters# particulate filters# coalescing air filters# air line filters


    Product Features Make a Difference with Other Suppliers

    Design with an exquisite and unique appearance.

    • Indicators or gauges for differential pressure installed on filter housings measure the difference in pressure and indicate if the filter element has been blocked prematurely.

    • Screw threaded can be processed in GRc or NPT.

    • Installation is made easier with the connection kit and wall bracket.

    • A clear indication of where to tighten and loosen the air filter housing is provided by the design of the lock.

    • All air filter housings are protected by the Alocrome process, making them suitable for use in environments with severe corrosion, such as offshore platforms.

    • Provide a house test report

    • Supply OEM service


    Why Us?

    • With over 25 years of experience in research and development, production, and marketing.

    • production facility covers a total of 20000 square meters.

    • We're able to supply a wide range of products to meet your needs.

    • We have our own lab.with famous university

    • Products are CE and ISO certified.

    • Various price levels are available

    • Extensive experience with well-known air compressor brands.


    Contact Yun Air Technology Today

    Get in touch with Yun Air Technology's sales experts today to learn more about air filters for air compressors and why these components are so important to overall air compressor performance. Our friendly and knowledgeable team of air filter experts is available to assist you with selecting the optimal air filter for your compressors, automatic equipment, sand blasters, or color sorters. Please drop us an e-mail at info@yun-air.com. If you can not reach us by phone, please feel free to visit our website at: //www.yun-air.com.
