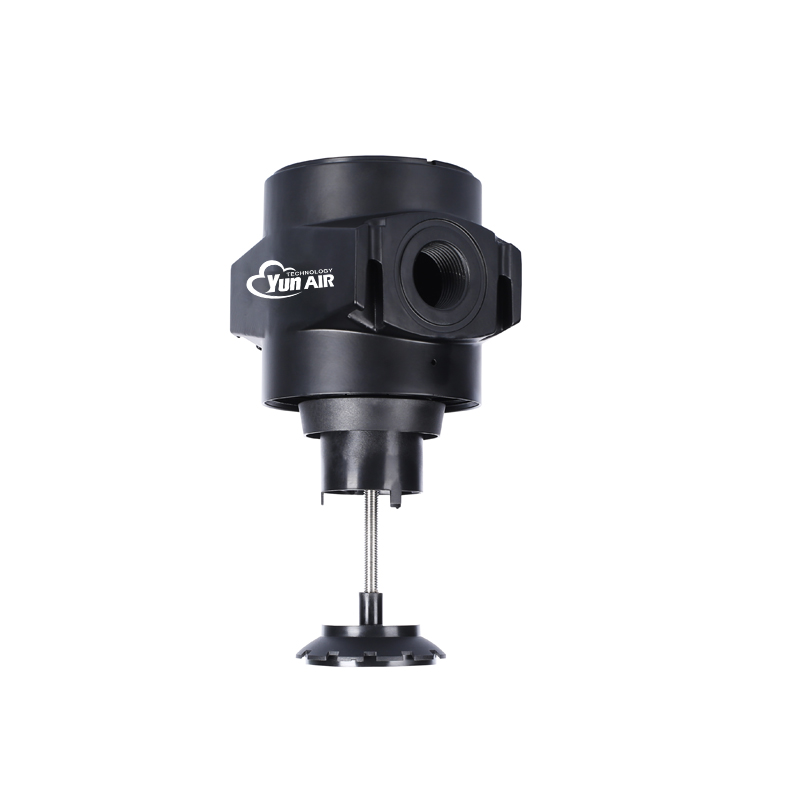

The YunAir WS50 1" Industrial Moisture Water Separator is specifically engineered for high-performance compressed air systems with a rated flow capacity of 4.5 m³/min (158 CFM). Utilizing advanced centrifugal cyclone technology, it serves as the ultimate first-stage defense—instantly removing over 99% of liquid water and bulk condensate before they reach your downstream refrigerated air dryers or pneumatic equipment.

Technical Specifications

•  Model: YunAir WS50

•  Port Size: 1" (Inch Connection)

•  Flow Rate / Capacity: 4.5 m³/min (158 CFM)

•  Separation Efficiency: >99% bulk liquid water removal

•  Max Operating Pressure: 16 bar (232 PSI)

•  Pressure Drop: Ultra-low initial pressure drop (<0.05 bar)

•  Housing Material: Die-cast aluminum alloy with electrophoretic treatment

•  Drainage: Heavy-duty internal automatic float drain

Key Performance Benefits

✔ Optimized Centrifugal Mechanics for 4.5 m³/min Flow
The internal cyclone baffle is precision-engineered to perfectly match airflows up to 4.5 m³/min. It creates a high-velocity vortex that flings liquid droplets out of the airstream with >99% efficiency, without choking your system.

✔ Minimum Pressure Drop = Maximum Energy Savings
Designed with a large internal flow path, the WS50 maintains a minimal differential pressure. This ensures your 4.5 m³/min rotary screw or reciprocating air compressor operates at peak efficiency, preventing energy waste and reducing your carbon footprint.

✔ 15-Year Durable Die-Cast Housing
Manufactured via advanced aluminum alloy die-casting and treated with an electrophoretic anti-corrosion coating. It has passed a 1000-hour neutral salt spray test (ISO 9227:2006) and a 5:1 burst safety factor test, ensuring rock-solid, reliable operation at 16 bar.

✔ Continuous Interruption-Free Auto Drainage
Equipped with a highly responsive internal float ball automatic drain. Large volumes of separated water are discharged immediately as they collect, keeping the 4.5 m³/min flow path completely unobstructed without manual intervention.

Perfect Compressor Pairing Guide

The YunAir WS50 (4.5 m³/min) is the ideal point-of-use or mainline filter size for:

•  22kW to 30kW (30HP to 40HP) Rotary Screw Air Compressors (typically producing around 3.6 to 5.0 m³/min).

•  Pre-treatment for 4.5 m³/min Rated Refrigerated Air Dryers to prevent water overloading of cooling heat exchangers.

Get a Free Quote on YunAir WS50 Water Separator Today!

Get in touch with Yun Air Technology's sales experts today to learn more about water separators and why these components are so important to overall air compressor performance. Our friendly and knowledgeable team of experts is available to assist you with selecting the optimal cyclone water separator for your compressors, automatic equipment, sand blasters, or color sorters.
