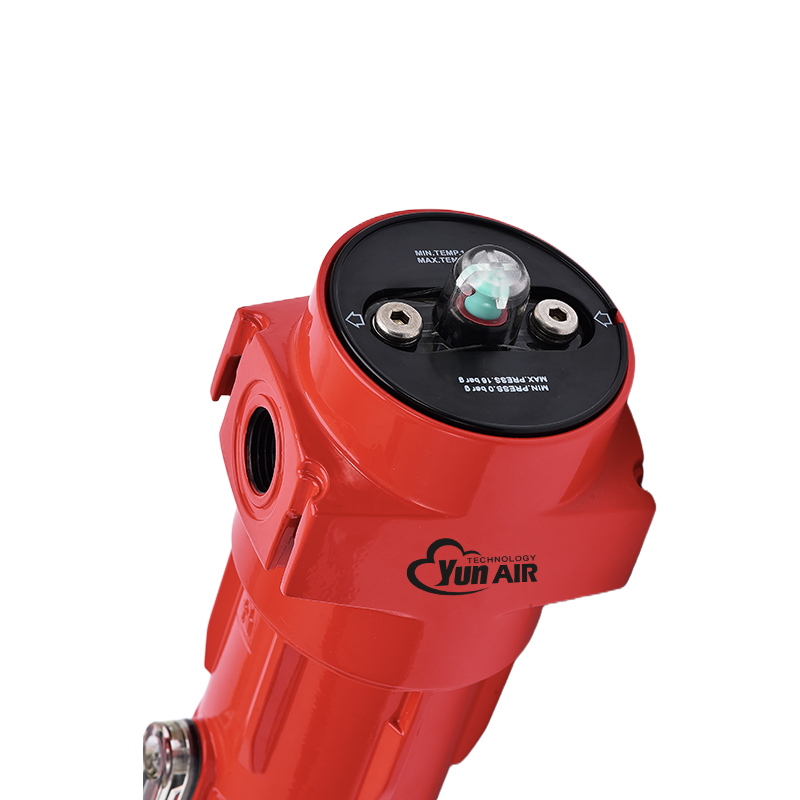

Eliminate Oil & Odors with YunAir YD017 ACS Activated Carbon Filter Oil Vapor Removal,1.0 m³/min, Rc1/2" Air Compressor Filter

Tired of customer complaints about oily smells or chemical odors contaminating products, processes, or the final environment from your compressed air systems?

The YunAir YD017 ACS Activated Carbon Filter is specifically engineered to remove trace oil vapors, hydrocarbon odors, and organic vapors from compressed air systems. It provides essential protection for high-precision downstream equipment and sensitive industrial processes.

Our carbon air filter element L017ACS is designed for Oil Vapor Reduction, made from thousands of activated carbon granules of sufficient thickness and high dwell time will be far more effective than one made from a thin layer of carbon, the max. resident content of oil vapor does not exceed 0.003 mg/m³ (21ºC), 0.003 ppm(w), changed when oil vapor detected.

Why Air Compressor Manufacturers & Distributors Choose YunAir YD017 ACS

✔  Targeted Odor & Vapor Removal: Our premium activated carbon media is optimized to adsorb residual oil vapors, hydrocarbon gases, and other odor-causing contaminants that pass through standard coalescing filters, ensuring truly clean, odor-free air.

✔  Air Flow Capacity (1.0 m³/min): Designed for demanding systems, this filter handles significant air volumes, making it ideal for central compressed air systems or larger point-of-use applications common in your customers' facilities.

✔  Enhanced Product & Process Protection: Prevent costly contamination in sensitive industries like Food & Beverage (FDA/CFR), Pharmaceuticals (cGMP), Electronics Manufacturing, Painting, and Medical Air. Ensure product integrity, taste, smell, and safety.

✔  Reliable OEM Component: Integrate the YD017 ACS seamlessly into your air compressor packages or purification skids. Provide your end-users with a complete, high-quality air treatment solution that addresses the critical final stage of odor removal.

✔  Extended Filter Life & Cost Efficiency: Robust construction and high-quality carbon loading maximize service intervals, reducing operational downtime and total cost of ownership for your end-users.

✔  Maintains Air Purity: Works effectively after proper particulate and coalescing filtration, ensuring the activated carbon bed focuses solely on vapor and odor adsorption without premature clogging.

Technical Specifications:

• Model: YunAir YD017 ACS

• Function:  Activated Carbon Filter (Adsorption of Oil Vapors, Hydrocarbons, Odors)

• Maximum Flow Rate: 1.0 m³/min

• Operating Pressure: Standard 1 - 10 bar, Max: 1.6 MPa (16 bar)

• Oil Vapor Removal Capacity: High-efficiency adsorption of oil vapors down to ≤  0.003 mg/m³ (Class 1 per ISO 8573-1:2010 for Oil) when installed correctly after coalescing filters.

• Odor Removal: Effectively eliminates hydrocarbon-based and other common compressed air odors.

• Operating Temperature Range: 2°C to 60°C (36°F to 140°F)

• Housing Material: Durable Aluminum Alloy (Standard)

• Connections: 1/2" RC Inlet/Outlet

• Filter Element: High-grade Activated Carbon Cartridge (Replaceable)

Ideal Applications:

The YunAir YD017 ACS is essential wherever odor-free, high-purity compressed air is non-negotiable:

✔  Food & Beverage Processing/Packaging:  Prevent taste/smell contamination in direct contact air (mixing, conveying, packaging).

✔  Pharmaceutical Manufacturing: Meet strict air purity standards (cGMP, USP) for processes and cleanrooms.

✔  Electronics & Semiconductor Fabrication: Protect sensitive components from hydrocarbon contamination.

✔  Spray Painting & Coating: Eliminate "fish eyes" and ensure perfect finish adhesion.

✔  Medical & Dental Air: Ensure safe, odor-free breathing air (requires appropriate pre-filtration and validation).

✔  Laboratories & Instrument Air: Protect sensitive analytical equipment from interference.

✔  Textile & Plastic Manufacturing: Prevent defects caused by airborne oil residues.

Partnership Advantages:

✔  Reduce Warranty Claims & Support Costs:

Over 28 years of manufacturing, superior upstream filtration minimizes contamination-related failures in dryers, valves, instruments, and end-point equipment using your air.

✔  Collaborative Opportunities:

We work closely with OEM partners on customization (branding, packaging), volume pricing, and technical support. Let us help you add value.

✔  Competitive Differentiation:

Incorporate high-efficiency filtration into your offerings as a key selling point, demonstrating commitment to quality and system longevity to your customers.

✔  Global Supply Chain Assurance

Stable inventory with flexible MOQ to support your production cycles.

✔  Certification Ready

CE and TUV compliant for international market access.

✔  Strong Brand Association:

Partner with YunAir, a leader in industrial air filtration solutions trusted globally.

Why Partner with YunAir?

• Trusted by leading color sorter manufacturers and processors worldwide.

• With over 28+ years of experience in research and development, production, and marketing.

• Production facility covers a total of 20,000 square meters.

• Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market.

• Extensive experience with well-known air compressor brands.

• Help you quickly find long-term supply resources

• Reduce your international procurement risks and costs

• Enhance your reputation

Reach Out for More Product Information

Get in touch with Yun Air Technology's sales experts today to learn more about Agricultural Machinery Filter and why these components are so important to overall air compressor performance. Our friendly and knowledgeable team of air filter experts is available to assist you with selecting the optimal air filter for your compressors, automatic equipment, sand blasters, or color sorters.
